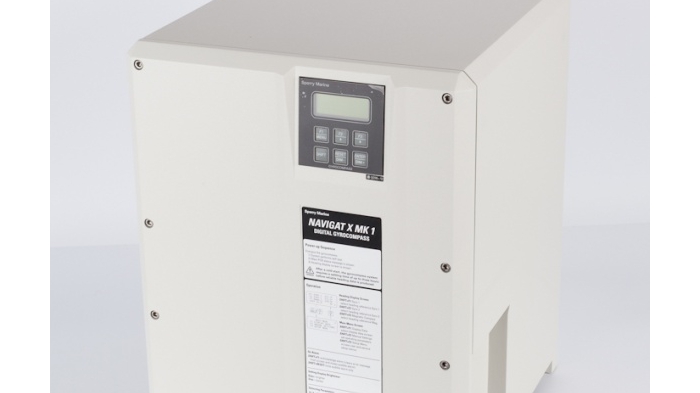

In order to meet modern demands on navigation and ship control technology, Northrop Grumman Sperry Marine has developed the NAVIGAT X MK 1; a new generation of advanced marine gyro compass systems.
The NAVIGAT X MK 1 Gyro Compass is the first of its type to be designed as a single unit and can be installed on any bridge on any vessel.
North Stabilization During Short Power Failures
With over 100 years of experience in the marine gyro compass industry, Northrop Grumman Sperry Marine delivers an advanced low weight marine gyrocompass. The unique method of supporting the system by means of mere buoyancy, ensures north stabilization during short power failures.
The Gyro Compass from Northrop Grumman Sperry Marine ensures high accuracy and maximum reliability under all environmental conditions. The Gyro Compass uses a data transmission technology instead of using slip rings. Providing proven technology and long maintenance periods, the Gyro Compass is a long-time secure investment, with low operation costs.
Extreme Weather Conditions
The NAVIGAT X MK 1 Mod 7 marine gyro compass provides highly accurate heading information in extremely heavy seas. The system is equipped with a special gyrosphere container, with a unique centering pin retaining arrangement that is mounted in an additional gimbal system. This allows an almost unlimited freedom of roll and pitch (±90°).
Key Benefits of Gyro Compass NAVIGAT X MK 1:
Complies with IMO regulations A.424(IX), A.694(17), A.821(19) – High-Speed Craft (HSC) and ISO 8728
Comprised of one single unit
Type-approved rate-of-turn output
Gyro system remains north stabilized during power interruptions of up to 3 minutes
Short maintenance and repair times – low service costs
Gyro Compass Features:
Automatic static north speed error correction – no extra unit required
High speed transmission and follow-up system 100° / sec
Highly accurate digital heading data transmission by shaft encoder
Twin rotors (19,000 rev / min) and liquid damping system eliminate latitude error
A ±180° electronic alignment error correction in setup program (mechanical correction is not necessary)
MTBF of 40,000 hours & Maintenance intervals of 18 months
Insensitive to horizontal acceleration
Will drive a maximum of 12 analogue repeaters
Two independent 6 steps/degree heading outputs (0.5 A)
Outputs to Navigation Data Printer:
Heading
Heading source gyro/magnetic
Rudder angles of two independent rudders
Automatic emergency power changeover and status alarm
Single point suspension of the gyrosphere container eliminates the well-known adverse effects associated with gimbals
For more information about Northrop Grumman Sperry Marine NAVIGAT X MK 1 Gyrocompass please do not hesitate contact us.
