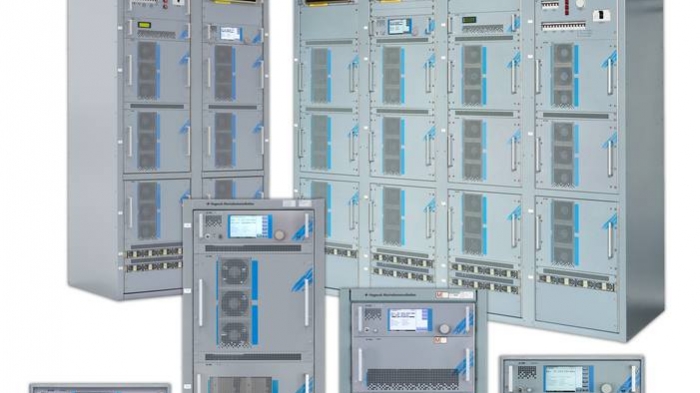

HF Radio Series 3000 is a family of software-based, multi-purpose, high-performance and modular equipment that comprises the transceivers TRX 3015 T / 3050 T / 3100 T (150 W / 500 W / 1 kW), the transmitters TX 3500 T (5 kW), TX 310 k/FH (10 kW / Frequency Hopping) and the VLF/HF receiver RX 3002 T.
The equipment family features identical basic modules for the receivers as well as transmitters. This modular building structure not only results in cost savings for production and provides for product versatility but also implies advantages with respect to integrated logistic support and high upgrade potential.
The radios can be operated via the built-in front panel display which assists during menu-driven operation and/or via the detached front panel DFP 3000 T or, alternatively, by using the remote control terminal UT 3002. Parameter settings are achieved via soft keys and/or flywheel and appropriate keypad elements on the front panel.
PRODUCT OVERVIEW
Receiver RX 3002 T
Transceiver TRX 3015 T
Transceiver TRX 3050 T
Transceiver TRX 3100 T
HF Transmitter TX 3500
HF Transmitter TX 310k FH
The modular design structure, available range of built-in and external system options, and extensive software support guarantees flexible adaptation to current and future radio communication requirements, including network applications.
FEATURES
Modular product family
Software-defined functions (“Software Radio”)
Touch screen control usuable with gloves
LAN interface for remote control and VoIP
10 kHz to 30 MHz receive
1,5 MHz to 30 MHz transmit
Output power 150 W / 500 W /1 kW / 5kW / 10 kW
Extensive self-test functions
On-site update of software functions
Full remote-control capability
Extensive environmental testing with certificate
INTERNAL
Built-in 40 dB Pre-/Interselector (PSI) to improve antenna co-location capability
Built-in ‘true’ side-tone receiver for Link 11 mode acc. to MIL-STD-188-203-1A
Built-in Automatic Link Establishment (ALE) acc. to MIL-STD-188-141B, App. A
Built-in high-speed multifunction data modem (MIL-STD-188-110B, STANAG 4285 etc.)
Frequency hopping mode (MAHRS and/or STANAG 4444 compatible) with external hopping controller
HF e-mail (STANAG 5066) and Link 22 interface upgrade
MDM 3003 E external high-speed multifunction data modem
Data link processor for adaptive communications
EXTERNAL
Antenna Tuning Units (ATUs) for whip and wire antennas
Antenna Tuning Units (ATUs) for various submarine comms masts
For more information about the Hagenuk Marinekommunikation GmbH products please do not hesitate contact us.
